BENTSAI BT-HH6205BL 12.7 mm Handheld TIJ Printer

The BENTSAI BT-HH6205BL is a portable thermal inkjet (TIJ) printer for batch numbers, manufacturing or expiry dates, serial numbers, text, logos, QR codes and barcodes. It is designed for both handheld coding and inline coding with the supplied photoelectric sensor. For Malaysian manufacturers, packaging operations and SMEs, the model is suited to applications that need a compact printer with a maximum documented print height of 12.7 mm.

What the BT-HH6205BL is designed to print

• Adjustable print height: 2.5–12.7 mm (up to 5 lines)
• Printhead size: 12.7 mm / 0.5 inch
• Maximum print size: 12.7 mm × 406 mm
• Resolution options: 600 / 300 dpi
• Maximum documented print speed: 30 m/min
• Operating modes: handheld and inline

Print content, files and code formats

The printer supports text, numbers, dates, counters, database content, logos, images, barcodes and 2D codes. For variable information, prepare the required data and verify the printed result before routine production.

• Image formats: JPG, JPEG, PNG and BMP
• Barcode formats: Code 128, Code 39, EAN-8, EAN-13, UPC-A, ITF 2 of 5, UPC-E and ITF-14
• 2D codes: QR Code, Data Matrix and GS1 Data Matrix
• Fonts: TrueType fonts and dot-matrix fonts
• Gray-level options: 1–5

Handheld use or conveyor coding

The BT-HH6205BL differs from the handheld-only 6205B because the BL model can connect to a photoelectric sensor for automatic coding on a conveyor. The sensor detects a passing item and triggers the print. Before setting up inline coding, confirm the product gap, print position, print direction, line speed and available clearance.

Ink and substrate selection

Choose the cartridge according to the production surface. BENTSAI documents water-based ink for porous and semi-porous substrates such as paper, corrugated boxes, wood, fibreboard and textile. Solvent-based ink is documented for semi-porous and non-porous substrates such as plastic, glass, metal plates, aluminium foil and cables.

Documented colour options are Black, Cyan, Magenta, Yellow and Green for water-based cartridges; and Black, Cyan, Magenta, Yellow, White, Green and Invisible for solvent-based cartridges. Maintain an ink throw distance of 2–5 mm between the nozzle plate and the item. Always test the actual substrate, code design and drying requirement before production.

Operation and cartridge care

The BT-HH6205BL has a 4.3-inch HD touch screen, a FREERTOS system and 128M embedded memory. Its battery configuration is two 2600 mAh 18650 lithium-ion batteries, documented for up to 16 hours of operating time. The BL model also supports a DC 9V/2A power supply for inline use.

TIJ cartridges integrate the ink supply and printhead. To reduce the risk of nozzle drying during extended idle periods, remove the cartridge and fit its protective cap in accordance with the manufacturer’s care guidance. Use the correct cartridge and carry out a print trial after changing ink or substrate.

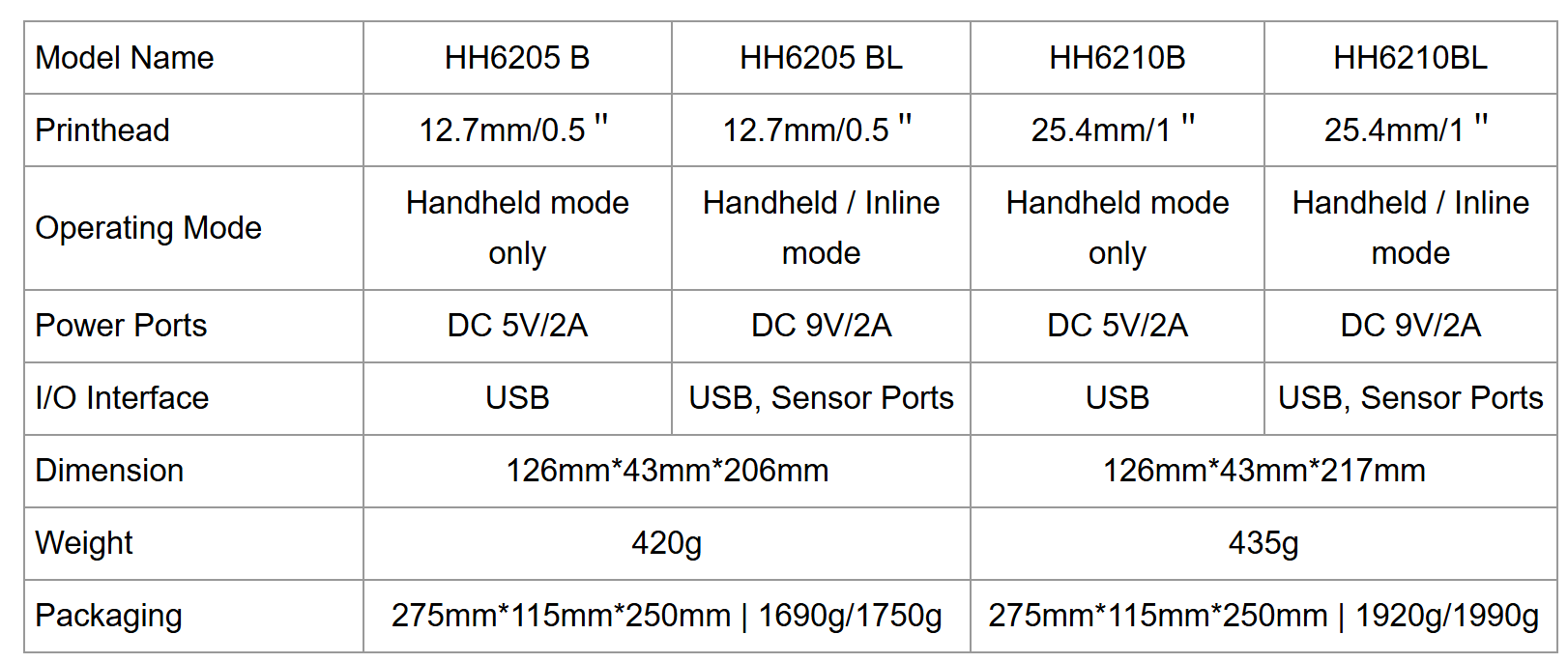

BT-HH6205BL technical specifications

Is the BT-HH6205BL a suitable choice?

The BT-HH6205BL is a practical option when the required code height is within 12.7 mm and the operation may need both portable printing and sensor-triggered conveyor coding. Before purchase, review the actual material, required ink type, code size, scanning requirement, conveyor speed and available print area. PTS Technology can help assess the intended coding application in Malaysia.

Quick answers

Can the BT-HH6205BL print on a conveyor?

Yes. The BL model supports inline printing with a photoelectric sensor, in addition to handheld printing.

What is the maximum print height for BT-HH6205BL?

The documented adjustable print height is 2.5–12.7 mm, for up to five lines.

Which ink should be used on plastic or metal?

BENTSAI documents solvent-based cartridges for semi-porous and non-porous materials such as plastic, glass, metal plates, aluminium foil and cables. Test the actual substrate before production.
